Commission Controllers, Ldrives and Dimmers

1. Power the device, and it will be in pairing mode, ready to be commissioned
2. Choose the zone into which you want to commission the device from the top right corner of the app

3. Go to the 'Devices' tab in the app
4.  Click on the '+' button and choose the 'Add Device' option



5. Select the Commissioning Mode

   The application supports both online and offline commissioning.

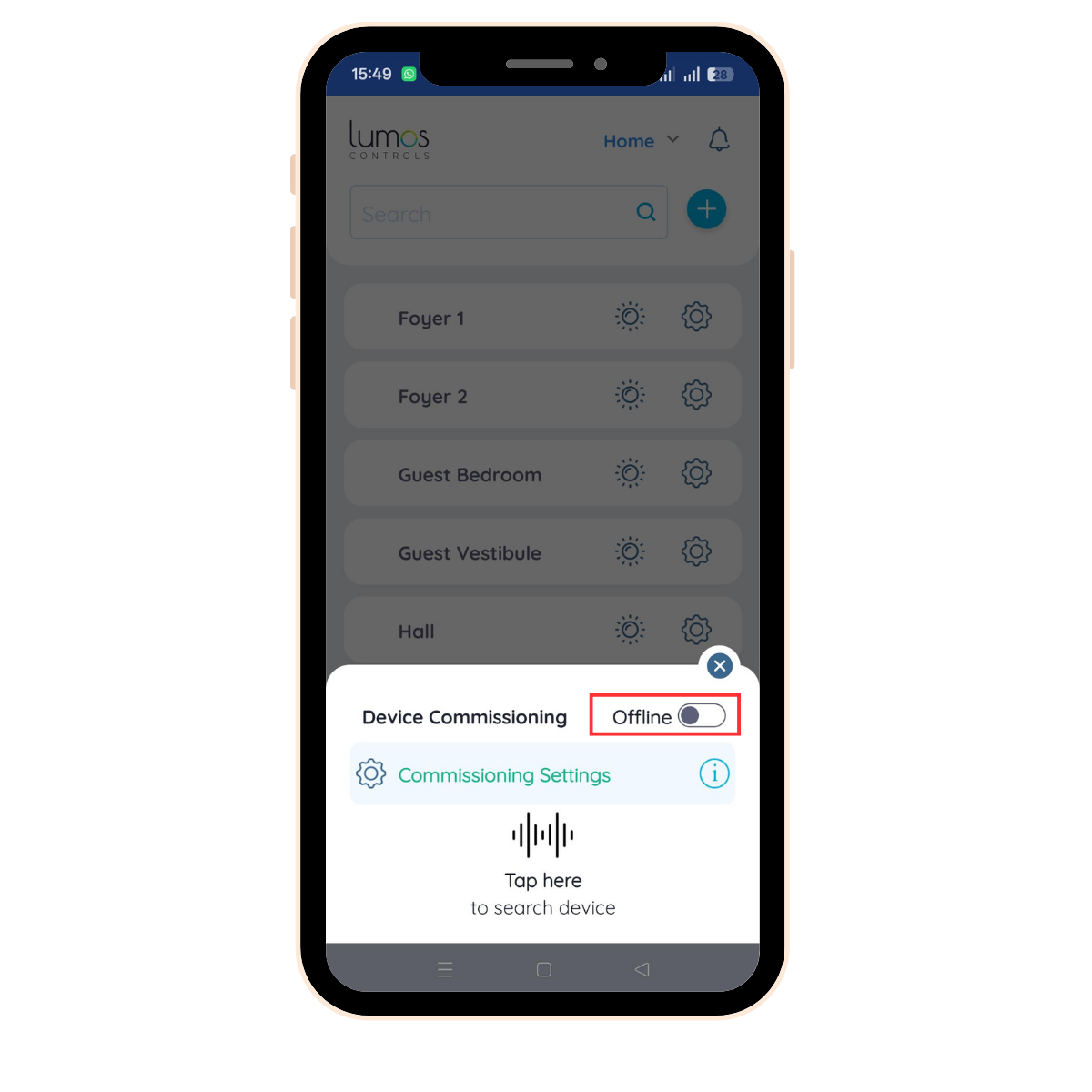

   Online Commissioning

   Leave the Offline toggle disabled when the application has access to the internet and you want to commission the device using the standard workflow.

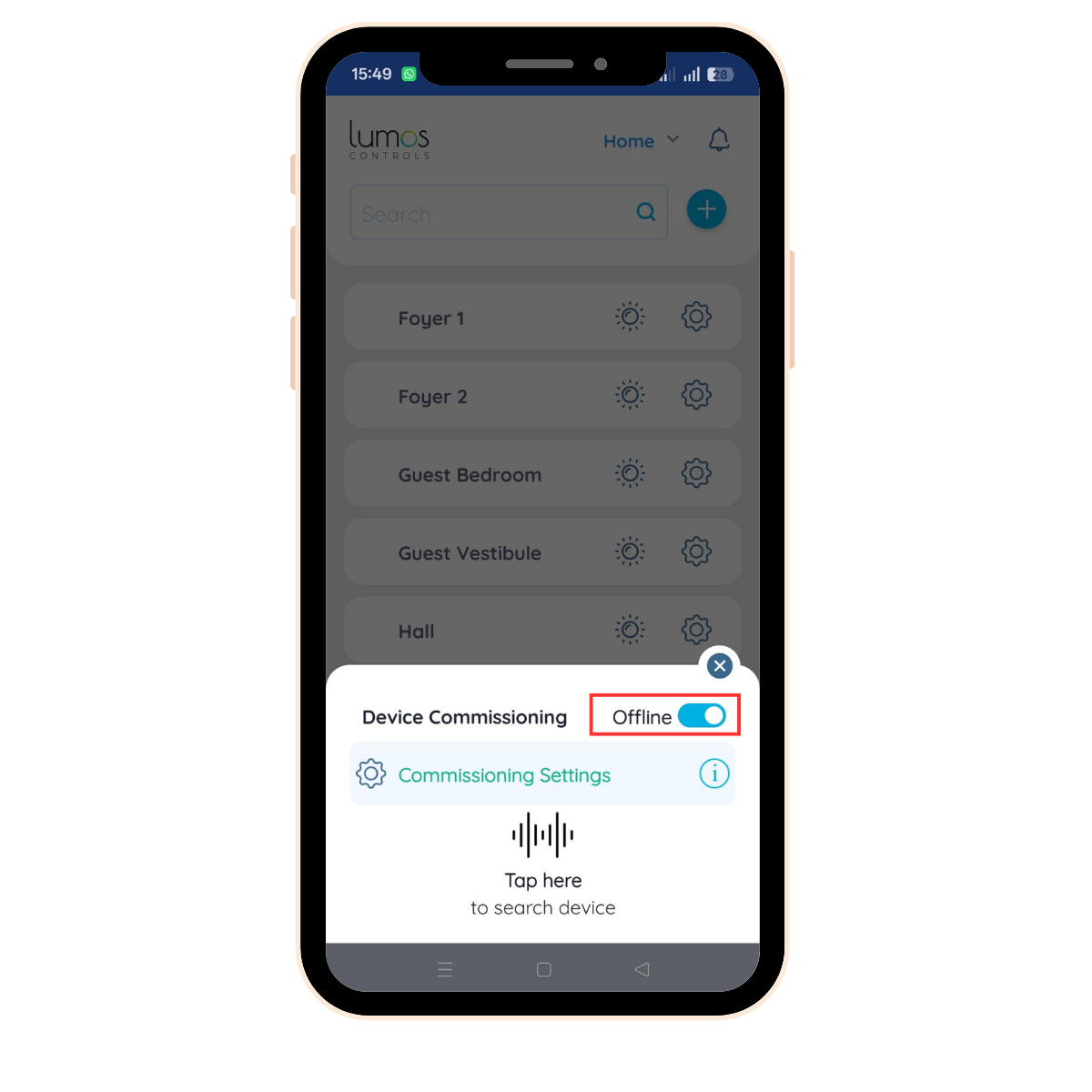

   Offline Commissioning

   Enable the Offline toggle to commission devices directly through local communication.

   You do not need to switch OFF mobile data or Wi-Fi before commissioning. Simply enable Offline from the Device Commissioning window, and the application will perform the commissioning process in offline mode.

   This option is useful when:

   • Internet connectivity is unavailable
   • The internet connection at the project site is unstable
   • Local commissioning is preferred
   • Mobile data must remain enabled for other applications
6. Choose the preferred commissioning.
7. Click on 'Tap here', and the device will be listed
8. Press the '+' button corresponding to the device, and the device will be commissioned


9. By default, devices will be commissioned with settings configured in the 'Commissioning Settings'
